Turbocharger Servicing
Did you know that we also service and upgrade all makes and models of Turbochargers? Our facility was designed from the ground up to service turbochargers with the type of quality you would expect on a manufacturing level.
Contact our sales and service team for more information at (813)-443-0531.
Optimax with Air Injector Fuel Injector Cleaning and Flow Testing
Need Some Advice?Speak to one of our gearheads
Product Description
Optimax with Air Injector Fuel Injector Cleaning and Flow Testing

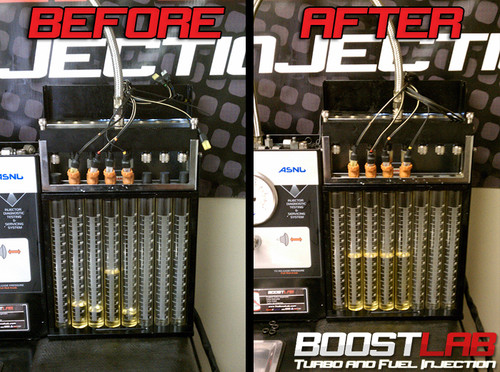

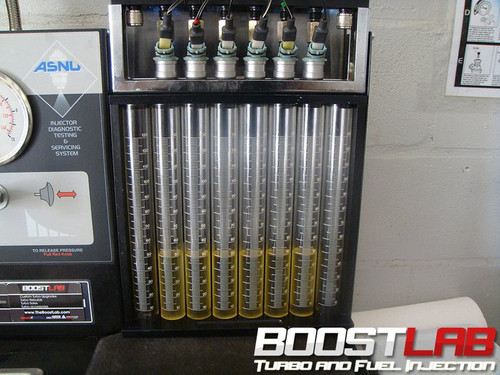

Injector bodies are cleaned, visual inspected, and numbered. Injector coils are now tested for resistance, shorts, and current draw. Perform leak test, spray pattern, and flow rate testing on our ASNU flow bench. Record the results. Remove filter baskets, o-rings, and pintle caps. Bead-blast any loose paint and rust from the metal injector body. The injectors are placed in our first ultrasonic cleaning tank to remove and any particles, dirt, etc for 5-10 minutes. Into a second ultrasonic tank they go, they are now cycled on and off allowing the ultrasonic energy to dislodge any particles and build-up inside the injectors for 15-20 minutes. A high pressure back-flush is done to remove any particles inside. Install new filter baskets, o-rings, and pintle caps. (as required) Back to the flow bench for retesting of spray pattern, flow rate, and leak checking. This test data is also recorded Prepare a comprehensive test report with before and after test data. The injectors are then packed to be returned.
Injectors must be shipped to our Tampa, FL facility at
8602 Temple Terrace Hwy, Suite D-12, Tampa, FL 33637.
Return Shipping will be included upon checkout.
**PRICE IS PER INJECTOR. ADJUST QUANTITY TO AMOUNT OF INJECTORS**
