Product Description

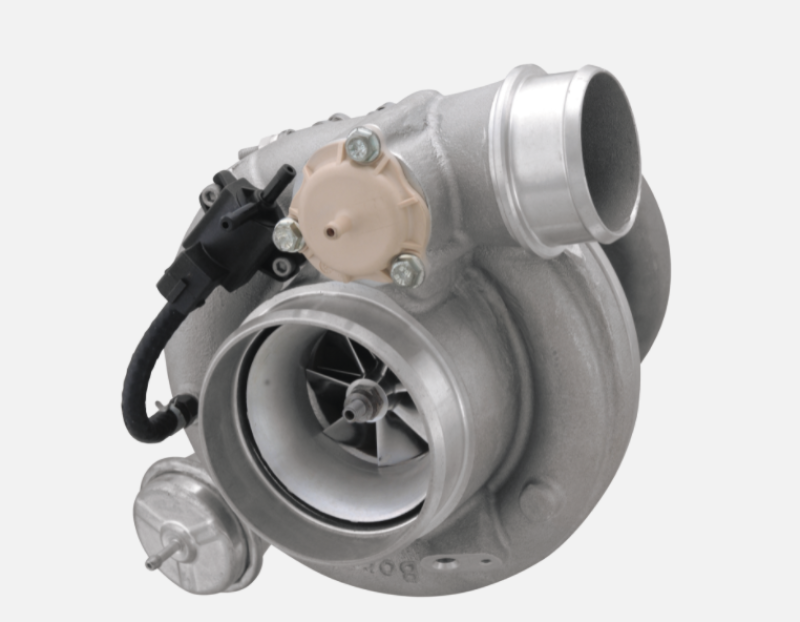

Borg Warner EFR 9274 Turbocharger

Features

  • Gamma-Ti Turbine Wheel
  • Integrated Compressor Recirculation Valve (CRV)
  • Dual Ceramic Ball Bearing Assembly with Metal Cage
  • Boost Control Solenoid Valve (BCSV)
  • Black Anodized Forged Milled Compressor Wheel (FMW)
  • Extended Tip Technology
  • Compressor Cover with Speed Sensor Mounting Provisions

Specs

  • Turbo Frame Size: B2
  • Comp Wheel Inducer: 72mm
  • Comp Wheel Exducer: 91mm
  • Turbine Wheel Exducer: 65mm
  • Turbine Wheel OD: 74mm

Turbine Housing Options

  • 12741008000: T3 .83 A/R Single Scroll IWG
  • 12741008001: T4 .92 A/R Twin Scroll IWG
  • 12741019002: T4 1.05 A/R Twin Scroll Non-WG
  • 12741008003: T4 1.45 A/R Twin Scroll Nom-WG

BorgWarner is boosting the power potential of its durable, high-performance Engineered For Racing (EFR) Series aftermarket turbochargers with the announcement of three new super-cores – the new EFR 8474, EFR 9274 and EFR 9280 – featuring new compressor wheels with updated blade geometries and larger inducer diameters. The new blade shapes and larger inducer diameters, along with matching compressor covers, result in increased mass air flow and enable engines to achieve higher peak power.

Along with increasing the wheel size, the compressor wheel blade shape and contour have been optimized to maximize flow while minimizing efficiency hits. BorgWarner also created a distinct compressor cover contour profile to maximize the air flow through the turbocharger. The new compressor wheels have been anodized black for visual impact and to differentiate the new models from existing EFR Series products. With the design changes to the compressor wheel and cover, the company’s latest aftermarket parts will provide up to an extra 200 horsepower (hp) than was previously possible when they are released later this year.

“When 1,000 hp isn’t enough, the new EFR super-cores offer the performance that aftermarket customers want,” said Michael Boe, Vice President and General Manager, Global Aftermarket, BorgWarner Turbo Systems. “We specifically tailored the new EFR Series products for aftermarket customers looking to get the most out of their turbochargers. With a larger compressor wheel inducer extending the air flow range through the turbocharger,  power junkies get more engine boost and the additional horsepower they crave.”

For those seeking higher power, BorgWarner’s new EFR 8474, EFR 9274 and EFR 9280 super-cores have compressor wheel inducer diameters between four and six millimeters larger than its existing EFR 8374, EFR 9174 and EFR 9180 products. The new super-cores will fit a range of vehicles with single turbocharged engines from 2 liters up to 6 liters. The enhanced parts also can be used in twin turbo configurations and are especially beneficial for V6 and V8 applications. BorgWarner will preview the super-cores in its booth (25125) at the 2018 SEMA Show, which takes place Oct. 30 to Nov. 2, 2018, in Las Vegas.

Recognized across the world for class-leading performance and reliability, EFR Series turbochargers contain an unprecedented combination of advanced technologies. These include:

  • Low-weight Gamma-TiAI (titanium aluminide) turbine wheels and shaft assemblies for quick boost response
  • Patented dual-row ceramic ball bearing cartridges for more thrust load capacity, durability and turbine efficiency at low expansion ratios
  • Investment-cast stainless-steel turbine housings for increased efficiency, improved durability and corrosion resistance

As a testament to their boosting capabilities, EFR turbochargers have boosted the race cars in the Verizon IndyCar Series since 2012 and have completed more than 1.25 million trouble-free miles. BorgWarner is the Official Turbocharger Partner of the Verizon IndyCar Series.
