BL Billet T3/T4 Extended Turbo Oil Drain Flange (-10 AN) TEAL EDITION

Boost Lab

Out of Stock

Need Some Advice?Speak to one of our gearheads

Product Description

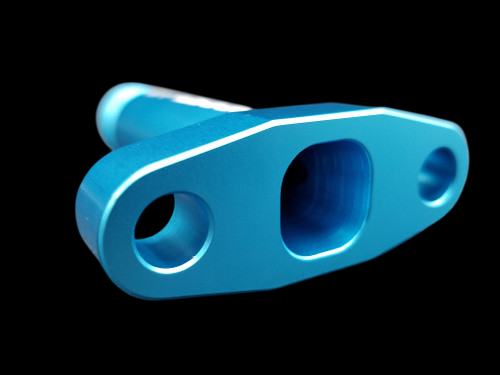

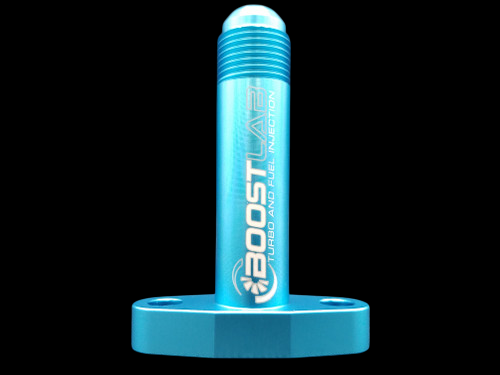

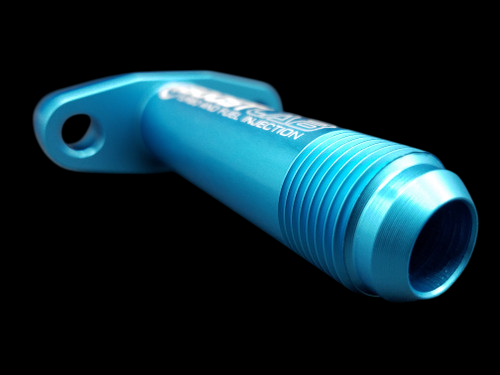

Boost Lab Extended Oil Drain Flange (-10AN)


**limited quantity available**

Gasket Included!

(Bolt Hole Center to Center Dimension: 2")


Our newly designed turbo oil drain flange allows more clearance for top mounted turbochargers to allow ease of installation and removal. These oil drain flanges are extended 3" in length to put the fitting away from the turbocharger. Our newly designed extended drain flange is machined from military grade Billet 6061-T6 Aluminum. T3/T4 oil drain gasket included for a leak free seal. The Teal Edition is hard anodized.

This flange will fit BorgWarner S200 and S300, most Garrett/Precision/Turbonetics T3/T4 turbochargers, etc.

Turbocharger Fitment:

  • Borg Warner
    • S200 Series Turbochargers
    • S300 Series Turbochargers
    • S360/S362 FMW/S363/S364.5 FMW/S366
    • SX-E Series Turbochargers
  • Boost Lab
    • BL-R 300 Series Turbochargers
    • BL-5757
    • BL-5858
    • BL-6058
  • Precision
    • 5858
    • 5862
    • 6262
    • 6266
    • 6466
    • 6766
    • 6870
  • Turbonetics
    • T3 Turbochargers
    • T4 Turbochargers
    • 60 Series Turbochargers
    • GTK Series Turbochargers
    • TNX Series Turbochargers
  • Garrett
    • Small Frame Journal Bearing Turbochargers
    • 50 Trim Turbochargers
    • 57 Trim Turbochargers
    • 60 Trim Turbochargers

Please be sure that your turbocharger has the square oil drain flange prior to ordering. If you are unsure if it will work on your turbocharger, feel free to call or email us prior to placing your order.
