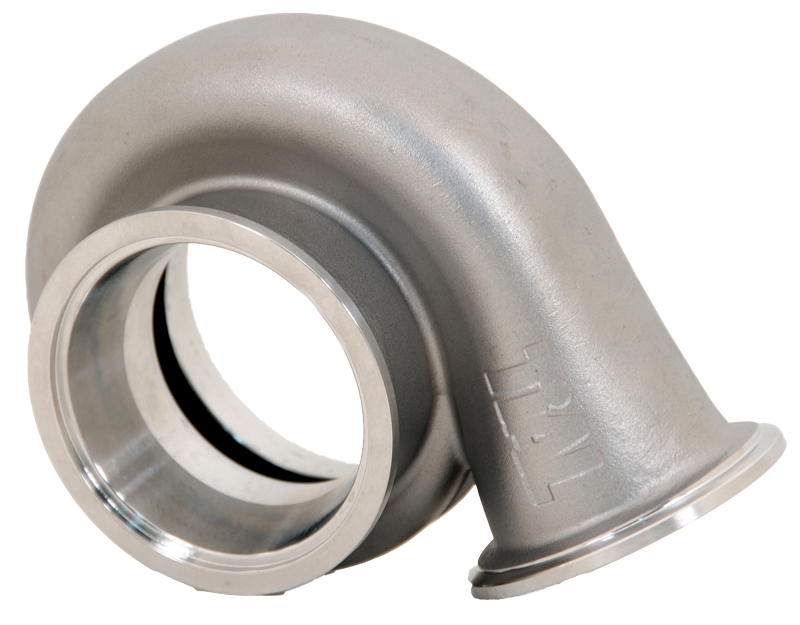

Xona Rotor XR-64S .63 A/R TiAL V-Band turbine housing, angled front view showing inlet flange and bolted outlet flange
Xona Rotor XR-64S .63 A/R turbine housing, front angle showing dual V-band inlet and outlet flanges

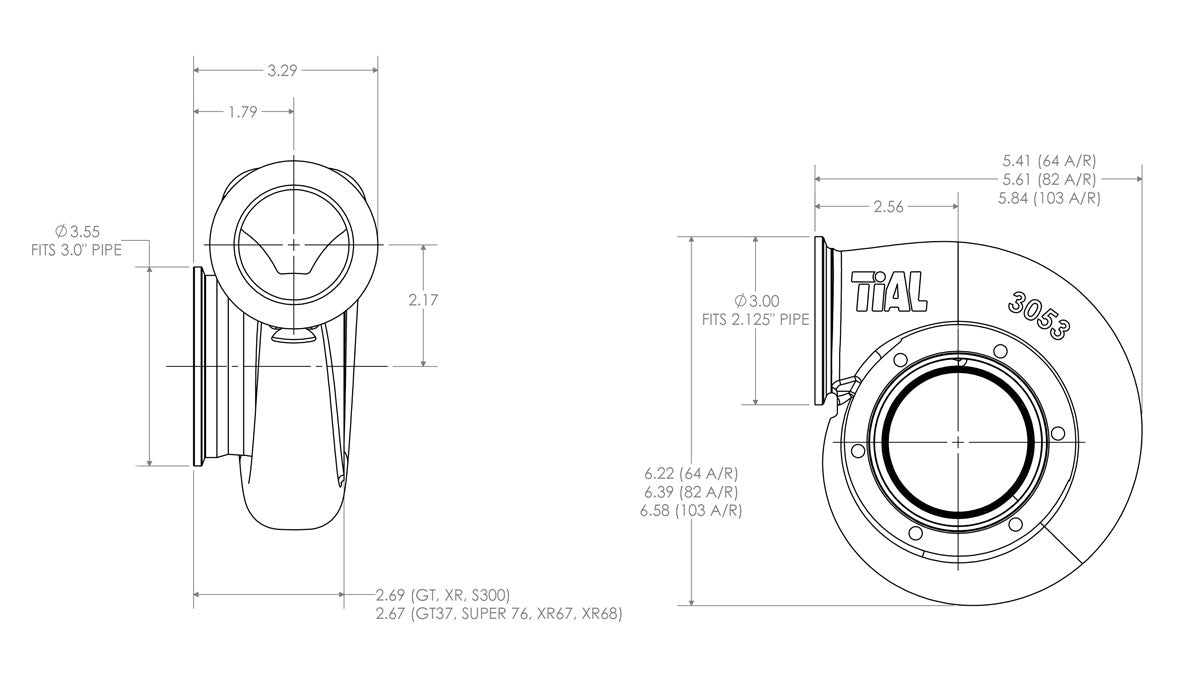

Technical drawing of the Xona Rotor XR-64S turbine housing, front and side views with dimensions.

Xona Rotor

Xona Rotor XR-64S .63 A/R TiAL V-Band In/Out Turbine Housing

SKU: 006875/001814/002505/002500/002506

$514

In stock
Xona Rotor XR-64S .63 A/R TiAL V-Band In/Out Turbine Housing

$514

$514

Machined to accept Xona XR64S Turbochargers Only. Explore the full line of Xona Rotor turbine housings to find the perfect fit for your performance requirements.

TiAL Sport SS turbine housings are designed, engineered, tooled, cast and machined all under one roof, at our facility here in Owosso, MI. Learn more about TiAL Sport's history and expertise.

Technical Specifications:

  • .63 A/R V-Band In/Out by TiAL
  • Machined for Xona XR64S 72.2/63.2mm TW
  • Investment-cast stainless steel
  • CNC machined for a perfect fit
  • 100% U.S, made quality.

What's In The Box:

  • Turbine housing
  • 300 series SS clamp plates
  • Clamp plate bolts

Available Options:

  • Turbine housing ceramic coating
  • V-Band clamp & flange kit

Additional Flange & Clamp Information:

Description Part Number
TiAL .63 A/R V-Band In/Out Turbine Housing for XR64S 006875
Turbine Inlet V-Band Flange 001814
Turbine Inlet V-Band Clamp 002505
Turbine Outlet V-Band Flange 002500
Turbine Outlet V-Band Clamp 002506
