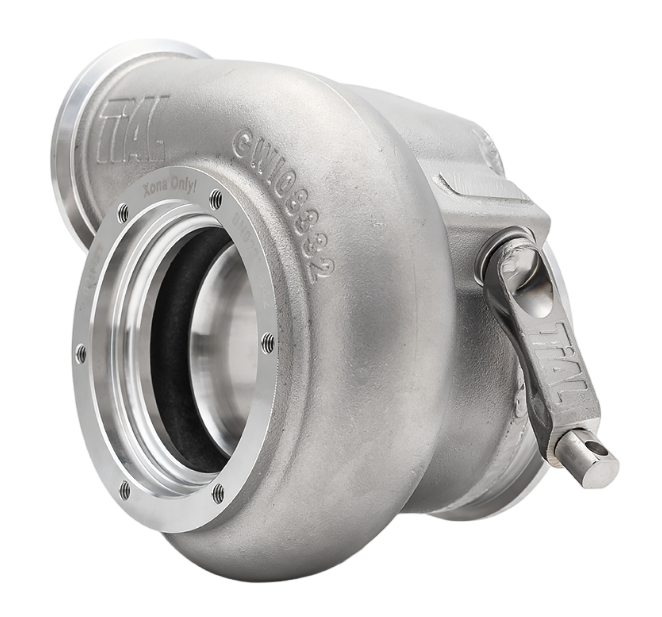

Xona Rotor XR-57S turbine housing, front angle view showing V-band inlet, outlet, and TiAL wastegate actuator arm

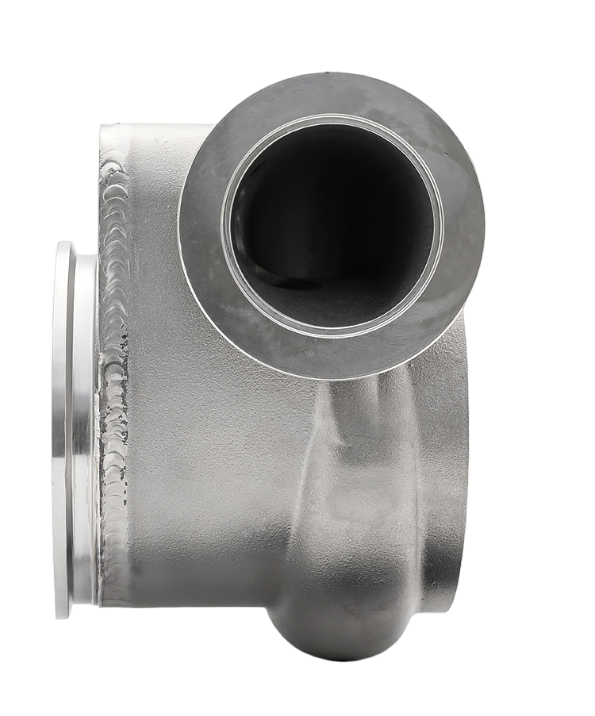

Xona Rotor XR-57S .62 A/R turbine housing, side view showing V-band inlet and outlet flanges
Xona Rotor XR-57S .62 A/R IWG turbine housing, angled view showing V-band outlet and wastegate port

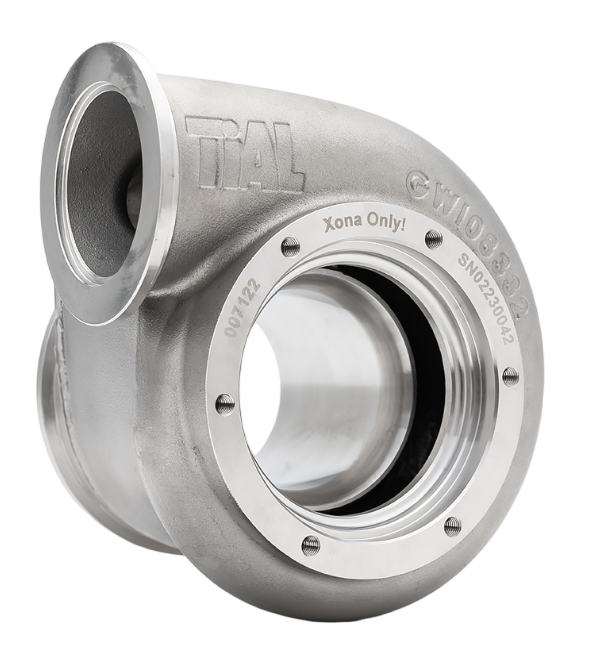

Xona Rotor XR-57S turbine housing, angled front view showing V-band inlet and outlet flanges with bolt holes

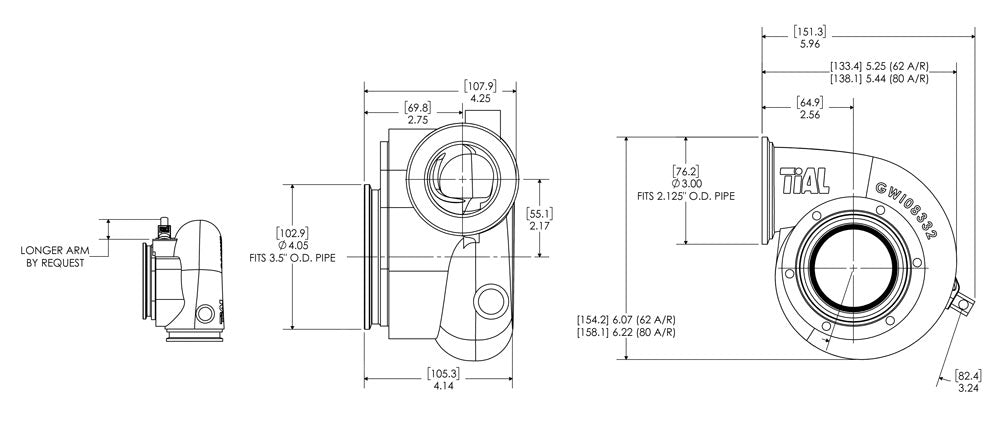

Technical line drawing of Xona Rotor XR-57S turbine housing showing front, side, and rear views with dimensions

Xona Rotor

Xona Rotor XR-57S .62 A/R IWG TiAL V-Band In/Out Turbine Housing

SKU: 007121/001814/002505/004626/004623

$678

In stock
Xona Rotor XR-57S .62 A/R IWG TiAL V-Band In/Out Turbine Housing

$678

$678

Internal Wastegate Turbine Housing for Xona XR-57S Turbochargers

Machined to accept Xona XR57S Turbochargers Only. Explore the full line of Xona Rotor turbine housings to find the perfect fit for your performance requirements.

TiAL Sport SS turbine housings are designed, engineered, tooled, cast and machined all under one roof, at our facility here in Owosso, MI. Learn more about TiAL Sport's history and expertise.

Technical Specifications:

  • .62 A/R IWG V-Band In/Out by TiAL
  • Machined for Xona XR57S 63.7/55.8mm TW
  • Investment-cast stainless steel
  • CNC machined for a perfect fit
  • 100% U.S, made quality.

What's In The Box:

  • Turbine housing
  • 300 series SS clamp plates
  • Clamp plate bolts

Available Options:

  • Turbine housing ceramic coating
  • V-Band clamp & flange kit

Additional Flange & Clamp Information:

Description Part Number
TiAL .62 A/R V-Band In/Out Turbine Housing for XR57S 007121
Turbine Inlet V-Band Flange 001814
Turbine Inlet V-Band Clamp 002505
Turbine Outlet V-Band Flange 004626
Turbine Outlet V-Band Clamp 004623
