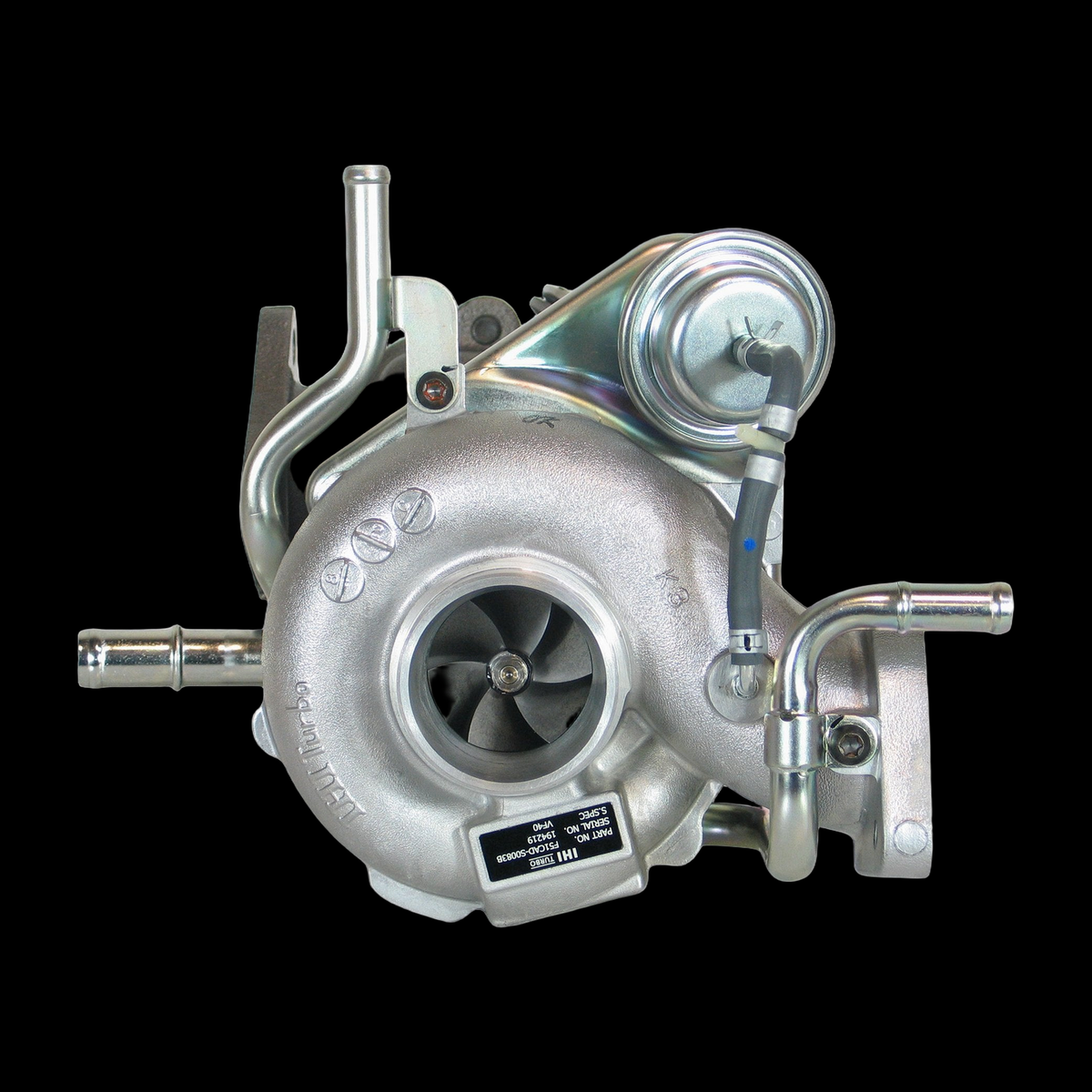

IHI VF40 turbocharger, front view showing compressor wheel, coolant lines, and actuator, for 2005-2009 Subaru Legacy GT/Outback XT

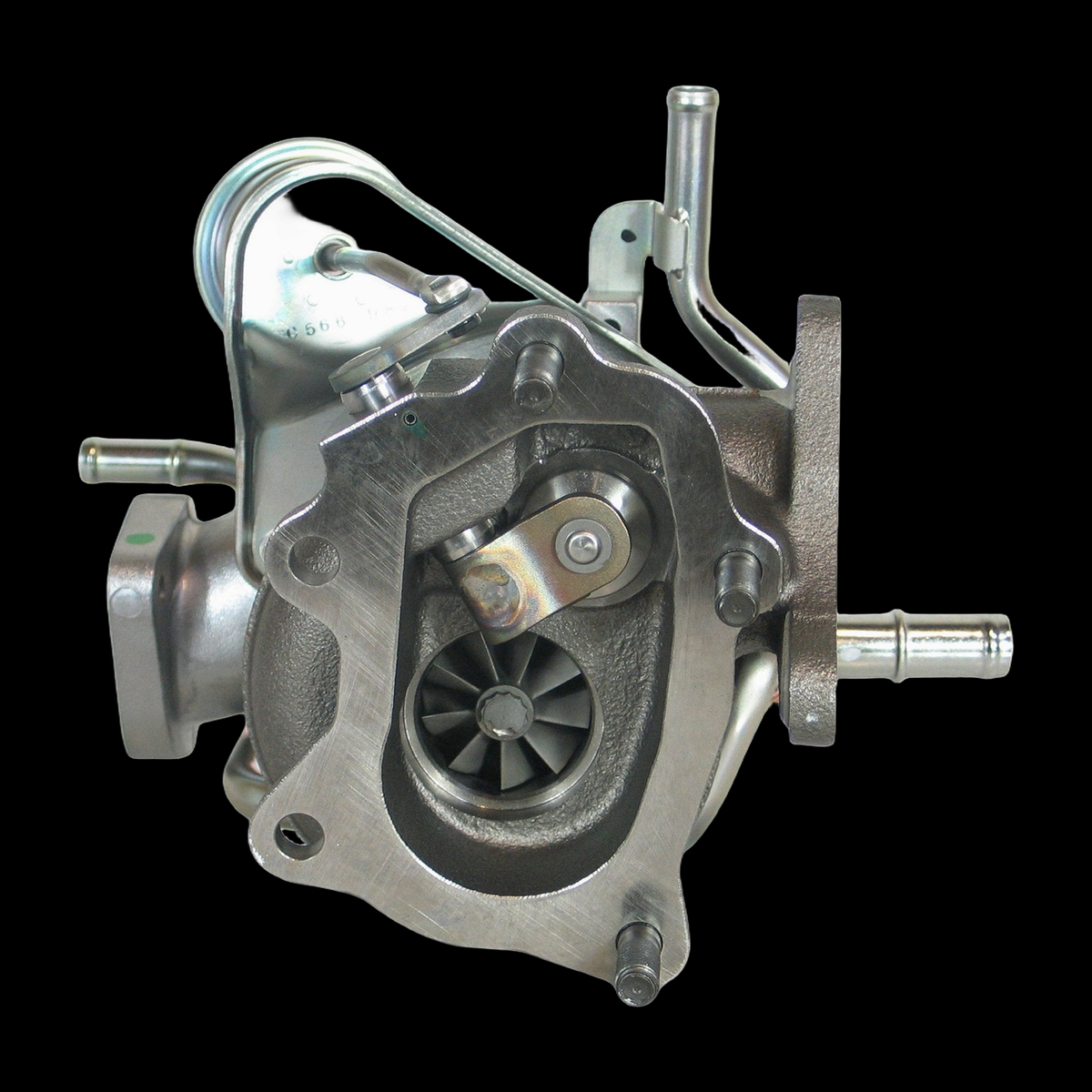

IHI VF40 turbocharger, front view showing turbine wheel, coolant fittings, and actuator, for Subaru Legacy GT

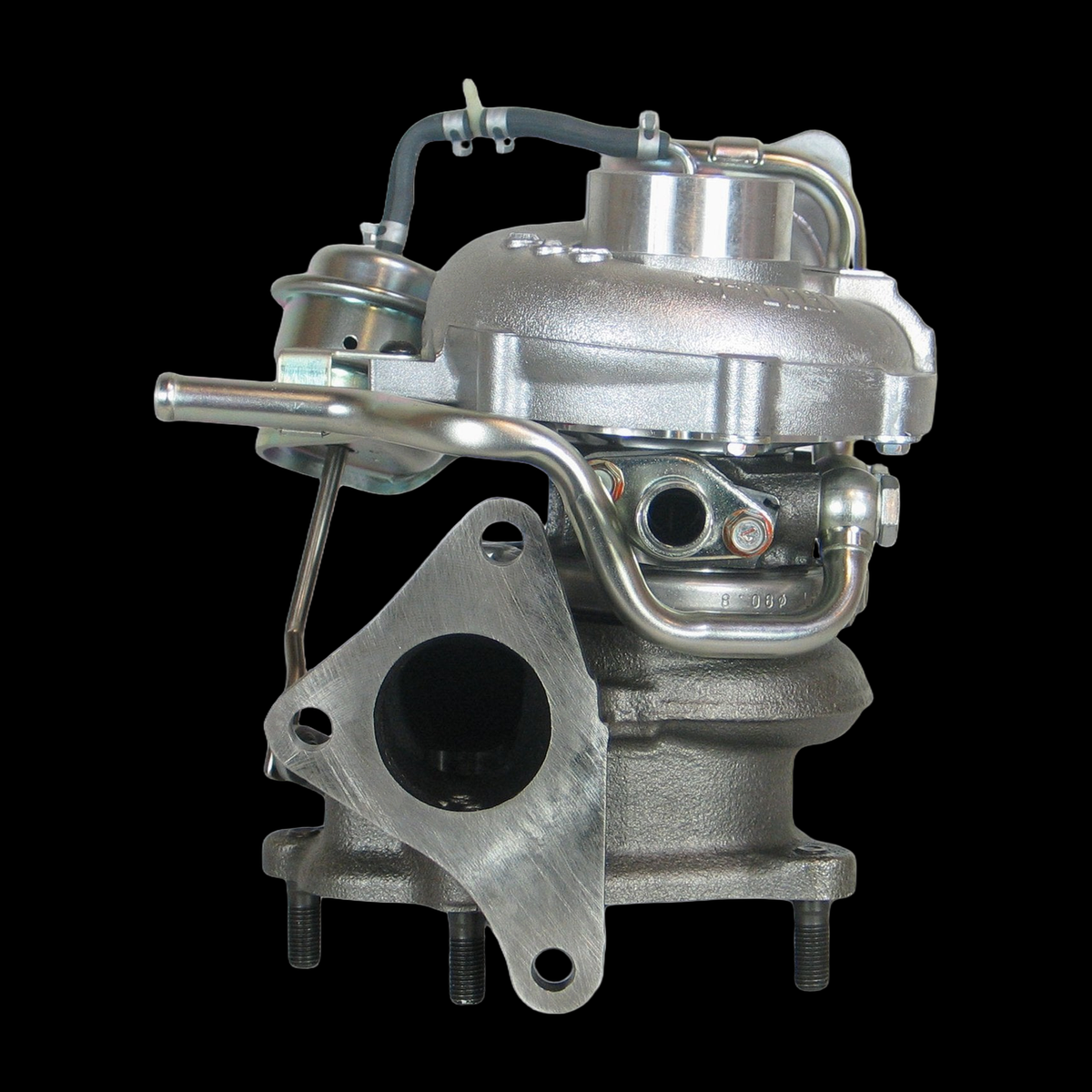

IHI VF40 turbo for 2005-2009 Subaru Legacy GT, Outback XT, front angle showing actuator, oil fittings, exhaust flange studs

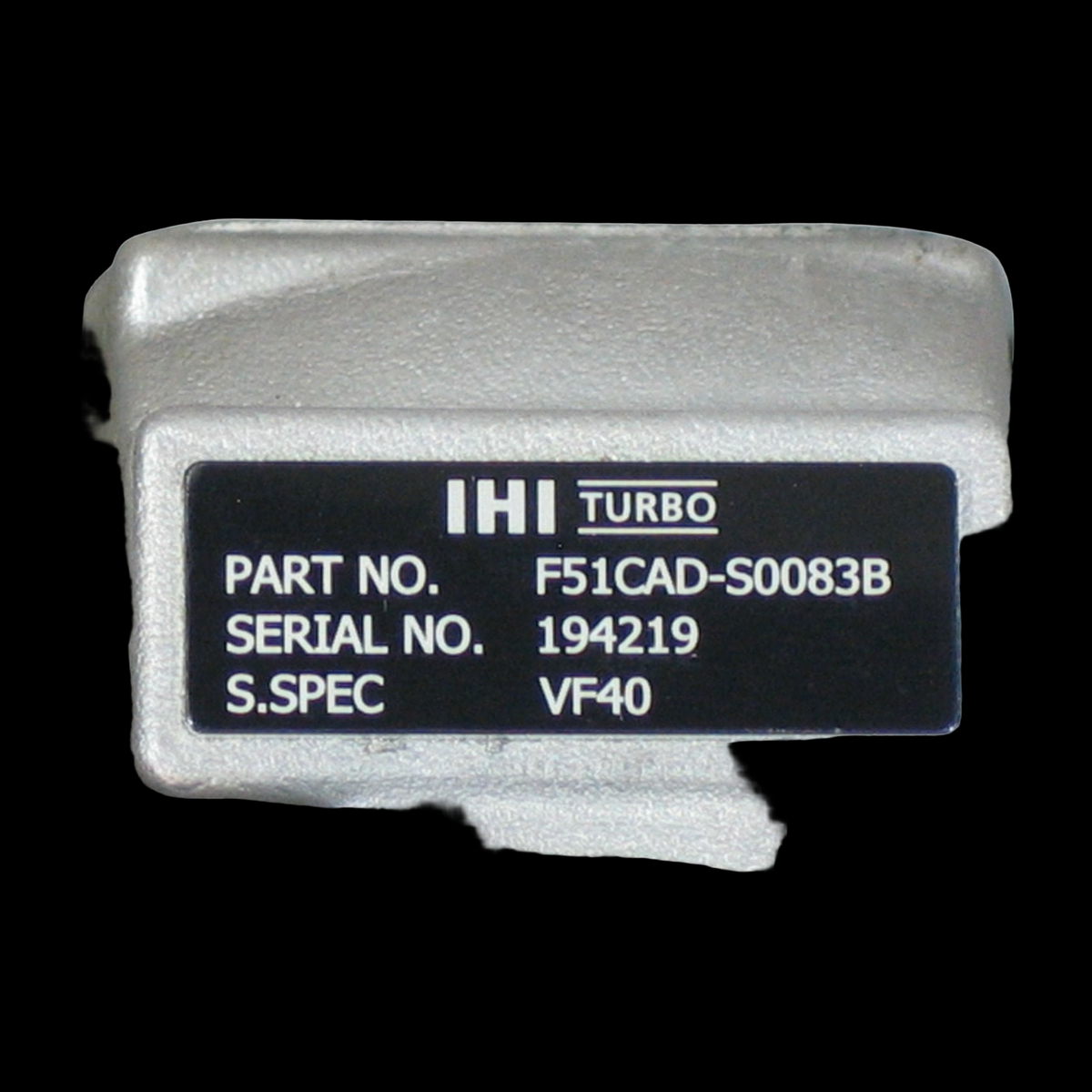

IHI VF40 turbo close up of the ID label showing part number, serial number, and S.SPEC VF40

IHI VF40 (2005-2009 Subaru Legacy GT, Outback XT)

$1260

This IHI VF40 turbocharger is a direct replacement for the 2005-2009 Subaru Legacy GT or Outback XT.

Part Number: VC430083
Short Spec.: VF40
Interchangeable Number: F51CAD-S0083B, F51CAD-S0083BN, VA430083, VB430083, VD430083, VE430083
OEM Number: 14411AA510, 14411AA511, 14411AA51A, 14411-AA510, 14411-AA511, 14411-AA51A
Turbo Model: RHF5H, RHF5H-610013P18NR5BRLL447CFZ
Manufacturer: IHI Turbo - CloverTurbo

Year: 2005-09
Engine: EJ25G/E

Angle α (Compressor Housing): 180°
Angle ß (Turbine Housing): 0°
Actuator: (2061016853)
Back Plate: (1300016141B)
Bearing Housing: (1450050460, 1900011229)
CHRA: VF40CHRA (1450050901, 1000040163)
Compressor Wheel: (Ind. 43.33 mm, Exd. 55.98 mm, 6+6 Blades, Super Back)(1450050402, 1200016517)
Heat Shield: (1450050340)
Nozzle Ring Assembly: (3000016028B)
Repair Kit: (5000080009)
Turbine Housing A/R: 18
Turbine Wheel: (Ind. 53.08 mm, Exd. 39.98 mm, 9 Blades)(1450050437, 1100016371)
