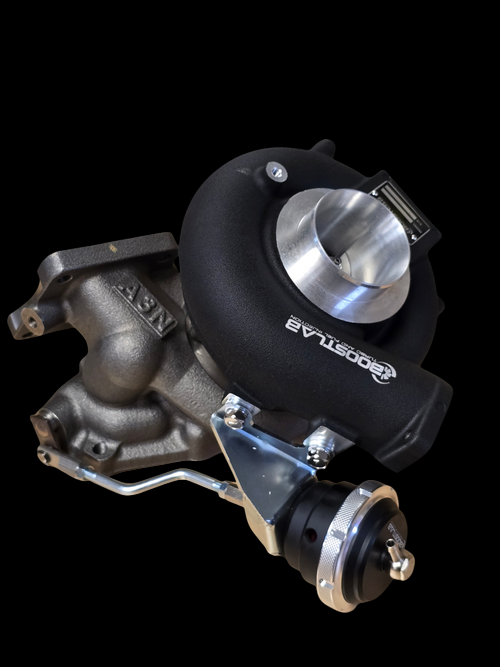

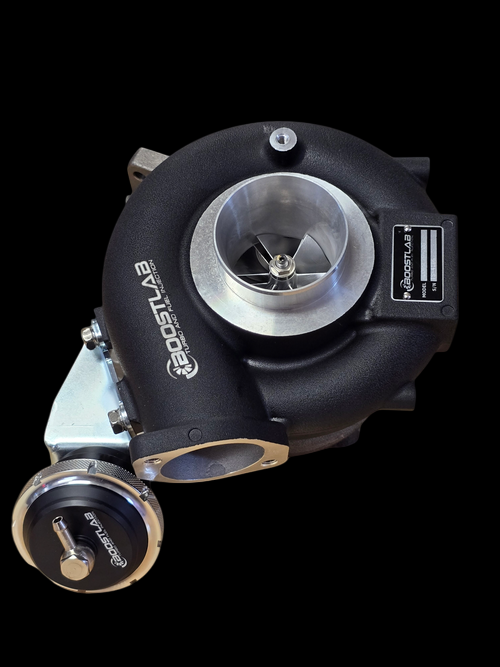

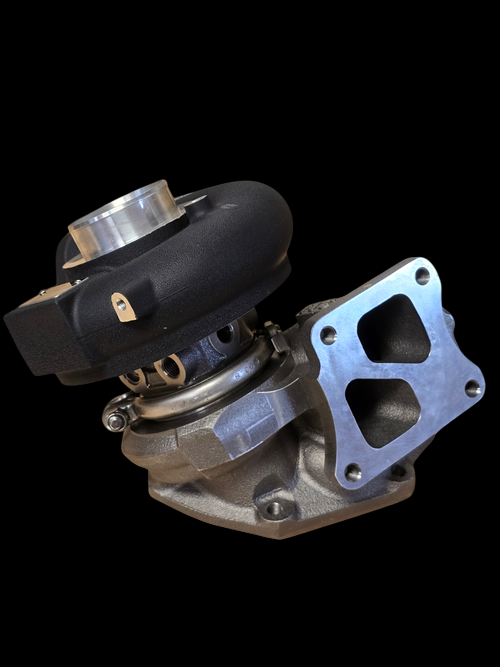

BL TD06SL2R-20G for Evo 8/9

"This is the PERFECT OEM Upgrade turbo for both street and track use for the EVO 8/9."

Overview

Introducing the new BL TD06SL2R-20G Billet turbocharger for the Mitsubishi Evolution 8/9! This is a direct bolt on replacement for your OEM turbo with no external modifications required for fitment. The BL TD06SL2R-20G is the perfect direct replacement for the everyday enthusiast or diehard track racer wanting a powerful turbo.

The popular 20G compressor wheel has become the go-to upgrade for the stock frame Evo 8/9 turbo for those wanting to make the most power in a stock frame. In stock MHI form, the 20G wheel is good but we took it a step further. We reworked the 20G compressor wheel to our specifications, providing more flow and overall power. Made from forged billet aluminum, our wheel features a 6+6 blade count, slim hub, and extended tip exducer. These are just a few of the highlights that give our Billet 20G compressor wheel an extra kick. The TD06SL2R turbine wheel is a jump up from the stock TD05HR. This cuts down on back pressure and allows the 4G63 engine to breathe easier at high rpms. This results in a smooth powerband all the way to redline. To handle this extra power we replaced the stock TD06 thrust bearing with our 360* Monster Thrust Upgrade. New oil drain gasket, crush washers, and turbine inlet & outlet gaskets are included at no extra charge.

Quick Specs

• Compressor
• Boost Lab spec 20G Billet Compressor Wheel
• Stock frame Evo-8/9 compressor cover
• Turbine
• MHI TD06SL2R Turbine Wheel

• 10.5cm2 Ni-Resist Evo-8/9 Turbine Housing
• 1 Bar Internal Wastegate Actuator
• Bearing
• MHI TD06 Twin Hydrodynamic Journal Bearings
• 360* TD06MTU Thrust Bearing (Monster Thrust Upgrade)
• Hardware & Gaskets
• Copper Crush Washers
• Turbo Oil Drain Gasket
• Turbine Inlet Gasket
• Turbine Discharge Gasket
