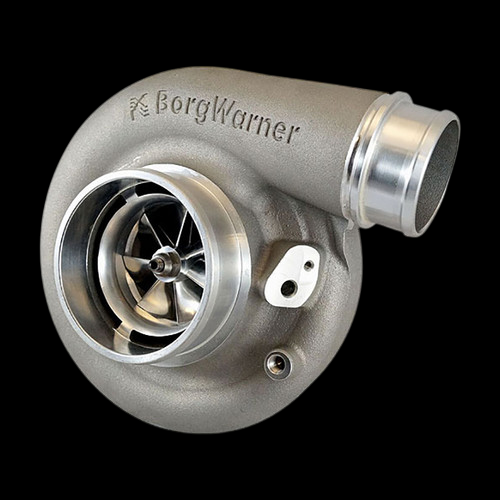

BorgWarner S364.5 SX-E Supercore turbo, front angle showing compressor wheel, housing, and oil fitting

BorgWarner

S364.5 SX-E Supercore (80/74mm Turbine Wheel)

SKU: 13009097055/862-107-9

$1086.35

Turbine Housing Options: T3 .82 A/R Open Scroll 3" V-Band Out (+250)
In stock
S364.5 SX-E Supercore (80/74mm Turbine Wheel)

$1086.35

$1086.35

Options
Turbine Housing Options: T3 .82 A/R Open Scroll 3" V-Band Out (+250)
  • T3 .82 A/R Open Scroll 3" V-Band Out (+250)
  • T3 1.06 A/R Open Scroll 3" V-Band Out (+250)
  • T4 .81 A/R Open Scroll 3" V-Band Out (+250)
  • T4 .96 A/R Open Scroll 3" V-Band Out (+250)
  • T4 .88 A/R Open Scroll Marmon V-Band Out (+159.28)
  • T4 .91 A/R Twin Scroll Marmon V-Band Out (+159.28)
  • T4 1.00 A/R Twin Scroll Marmon V-Band Out (+175)

BorgWarner S364.5SX-E Turbocharger Supercore

Rated @ 825HP

80/74mm Turbine Wheel

Borg Warner Turbo Systems is pleased to announce the release of the SX-E Supercore assemblies for gasoline & diesel performance applications.

S300 SX-E Supercore features:

  • 360 degree thrust bearing
  • Compressor cover integrated speed sensor port and pre-machined boost port
  • Flexible compressor cover outlet options (S300SX-E only)
  • Forged milled (billet) compressor wheels with extended tip technology
  • Optimized compressor stage aerodynamics
  • Interchangeable with existing SX turbine housings

Borg Warner Supercore assembly consists of the entire turbocharger minus turbine housing. All SX-E Supercores come with turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included. Choose a turbine housing from Borg Warner factory housings as well as AGP custom cast performance housings.


Compressor:

  • Borg Warner 4" Inlet/2.5" outlet Ported Compressor Housing
  • Integrated Speed Port (Sensor Not Included)
  • 64.5/87mm Billet Compressor Wheel w/ Extended Tip

Turbine:

  • 80/74mm Turbine Wheel
