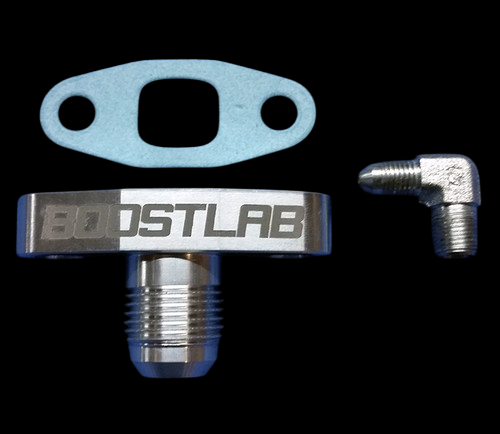

BoostLab T3/T4 turbo oil fitting kit, short billet drain flange with gasket and 90 degree fitting

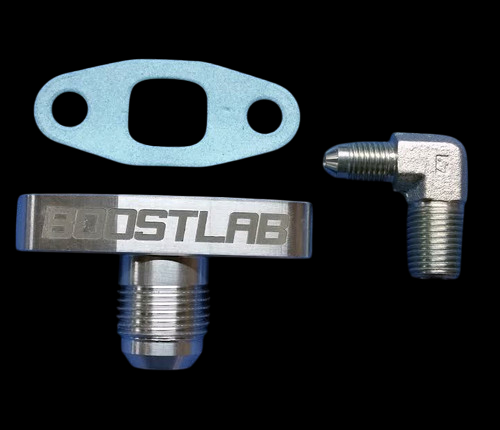

BoostLab T3/T4 turbo oil fitting kit, showing gasket, billet -10AN drain flange, and 90 degree fitting

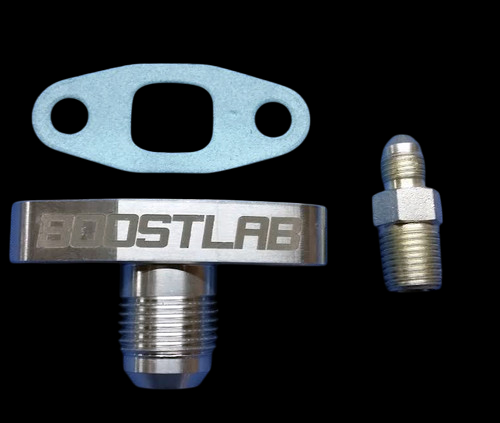

BoostLab T3/T4 turbo oil drain flange kit with gasket and AN fitting adapter, top view

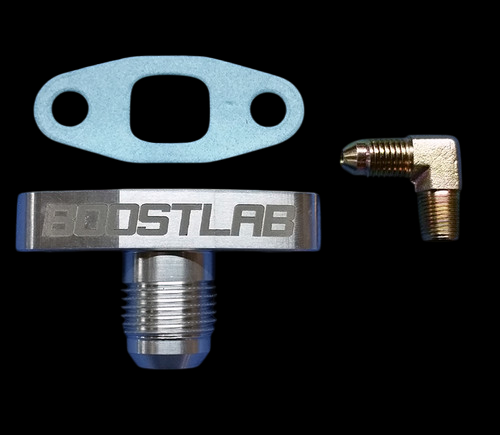

Boost Lab T3/T4 turbo oil fitting kit: billet -10AN drain flange, gasket, and brass 90 degree elbow fitting.

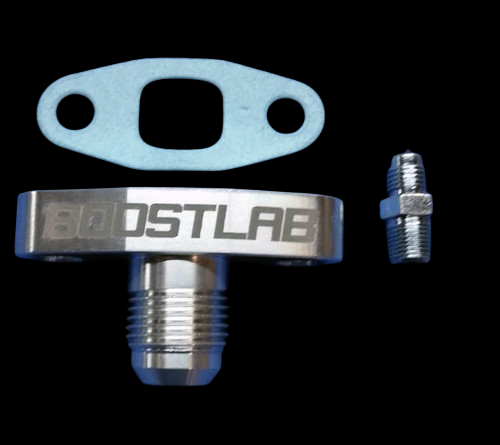

BoostLab T3/T4 turbo oil drain flange kit, billet flange with -10AN fitting, gasket, and adapter

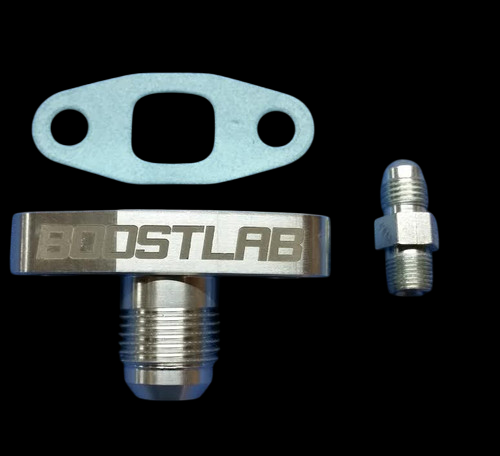

BL T3/T4 turbo oil fitting kit, billet drain flange with gasket and AN adapter fitting shown separately
BL T3/T4 turbo oil fitting kit, showing gasket, billet drain flange, and 90 degree fitting angle
BoostLab T3/T4 turbo oil fitting kit, short -10AN billet drain flange with gasket and 90 degree fitting shown

BorgWarner

BL T3/T4 Frame Turbo Oil Fitting Kit ( Short -10AN Billet Drain Flange)

SKU: BL-4101
Barcode: 663387777707
$37.37 $43.97
-15%
Kit Options: -4 AN Straight Feed Fitting (Borg Warner S200/S300)
In stock
BL T3/T4 Frame Turbo Oil Fitting Kit ( Short -10AN Billet Drain Flange)
$37.37 $43.97
$37.37 $43.97
Options
Kit Options: -4 AN Straight Feed Fitting (Borg Warner S200/S300)
  • -4 AN Straight Feed Fitting (Borg Warner S200/S300)
  • -4 AN 90* Feed Fitting (Borg Warner S200/S300)
  • -4 AN Straight Feed Fitting (Precision/Garrett JB)
  • -4 AN 90* Feed Fitting (Precision/Garrett JB)
  • -3 AN Straight Feed Fitting (Precision/Garrett JB)
  • -3 AN 90* Feed Fitting (Precision/Garrett JB)

Boost Lab T3/T4 Frame Turbocharger Oil Fitting Kit

Upgraded BL Billet T3/T4 Drain Flange

(Bolt Hole Center to Center Dimension: 2")

Kit Includes:

  • x1 -4AN or -3AN Oil Feed Fitting (-3 available in 1/8" NPT only)
  • x1 1/2" NPT Billet Aluminum Drain Flange
  • x1 -10AN BL Billet T3/T4 Drain Flange
  • x1 Oil Drain Gasket

Turbocharger Fitment:

  • Borg Warner (1/4" NPT)
    • S200 Series Turbochargers
    • S300 Series Turbochargers
    • S360/S362 FMW/S363/S364.5 FMW/S366
    • S200/S300 SX-E Series Turbochargers
  • Precision (1/8" NPT)
    • 5858
    • 5862
    • 6262
    • 6266
    • 6466
    • 6766
    • 6870
    • 6875
    • 7275
    • 7675
  • Turbonetics (1/8" NPT)
    • T3 Turbochargers
    • T4 Turbochargers
    • 60 Series Turbochargers
    • GTK Series Turbochargers
  • Garrett (1/8" NPT)
    • Small Frame Journal Bearing Turbochargers
    • GTW Journal Bearing Turbochargers
    • 50 Trim Turbochargers
    • 57 Trim Turbochargers
    • 60 Trim Turbochargers



If you do not see your turbocharger listed, please contact us to insure fitment
