The Boost Lab Retro Tee is the smoothest and softest t-shirt you'll ever wear. Made of fine jersey, it has a durable, vintage feel. These classic-cut shirts are known for their premium quality, as well as ability to stand up to a washing machine (will keep size and color after many washings).

MEN'S T-SHIRT SIZE CHART

This tank is soft and breathable, and the racerback style gives it a sporty feel.

WOMEN'S RACERBACK TANK TOP SIZE CHART

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on S300 4.21" marmon outlet turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

BorgWarner S300 Turbine Housings:

177191 S200 .83 A/R

177192 S200 1.15 A/R

177194 S200 1.22 A/R

177207 S300 .91 A/R

177208 S300 .91 A/R

177209 S300 1.00 A/R

177210 S300 .88 A/R

177211 S300 .88 A/R

178313 S300 .83 A/R

178319 S200 .91 A/R

178331 S200 1.27 A/R

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on S300 4.21" marmon outlet turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

BorgWarner S300 Turbine Housings:

177191 S200 .83 A/R

177192 S200 1.15 A/R

177194 S200 1.22 A/R

177207 S300 .91 A/R

177208 S300 .91 A/R

177209 S300 1.00 A/R

177210 S300 .88 A/R

177211 S300 .88 A/R

178313 S300 .83 A/R

178319 S200 .91 A/R

178331 S200 1.27 A/R

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on S400SX3 turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab Turbos w/ T4 1.25 A/R Housings:

BL76R

BL78R

BL-7875

BL80R

BL88R

BorgWarner S400SX3 w/T4 Housing:

All S400SX3 T4 Turbine Housings

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on S400SX4 frame turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab Turbos w/ T6 1.32 A/R Housings:

BL80R

BL88R

BL88RS

BorgWarner S400SX4 w/T6 Housing:

All S400SX4 T6 Turbine Housings

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on S400SX4 frame turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab Turbos w/ T6 1.32 A/R Housings:

BL80R

BL88R

BL88RS

BorgWarner S400SX4 w/T6 Housing:

All S400SX4 T6 Turbine Housings

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the small frame v-band in/out turbine housing.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab:

BL54X

BL58X

BL-6262

BL66X

BL67X

BL62R

BL64R

BL67R

Garrett:

GT/GTX30

GT/GTX35

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on small frame v-band in/out turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab:

BL54X

BL58X

BL-6262

BL66X

BL67X

Garrett:

GT/GTX30

GT/GTX35

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on small frame T3/T4 T3 turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab:

BL5858 (with vband outlet only)
BL62R
BL64R
BL67R

Precision:

All PTE T3 Housings w/ V-Band Outlet

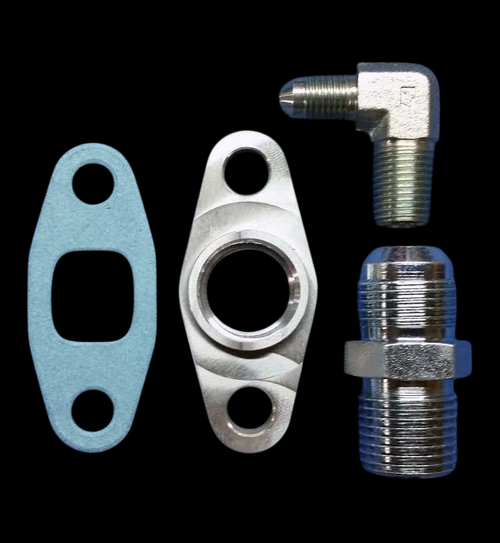

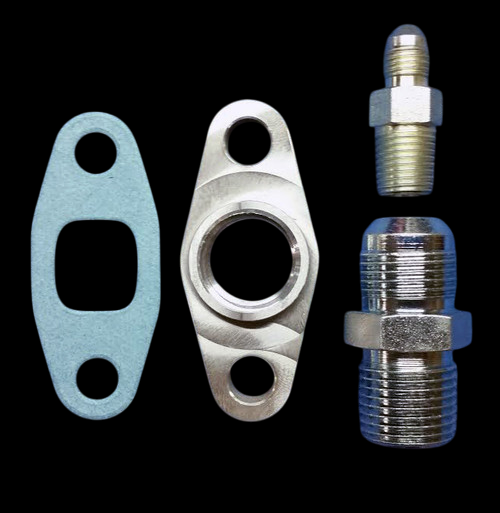

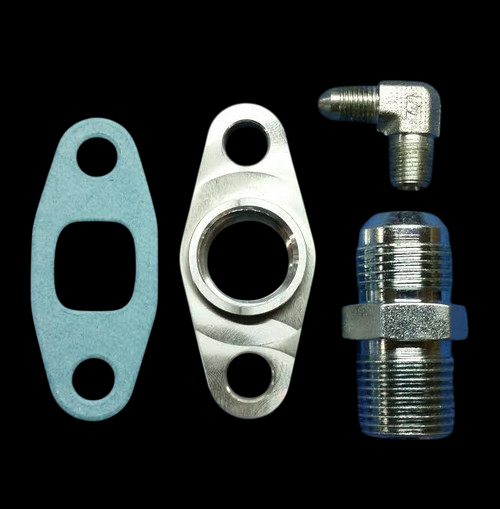

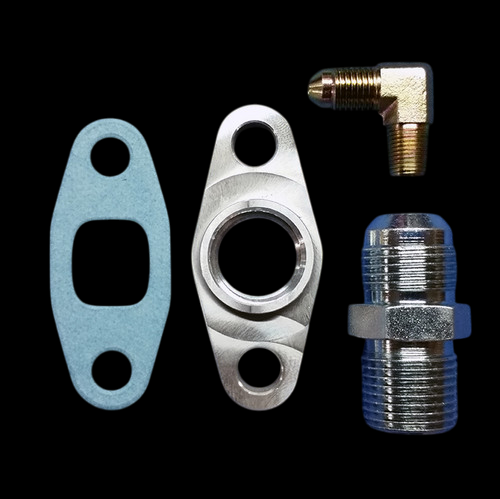

The BL T3/T4 oil drain gasket is made from a high quality materials and will provide a leak free seal.

This clamp and flange kit comes with (1) stainless steel Flange Adapter and (1) matching V-Band clamp which is specifically made for the outlet on T4 turbine housings.

This combination provides a complete leak-free seal without any gaskets required.

Made in the USA.

Fits the following models:

Boost Lab Turbos w/ T4 Housings:

BL62R

BL64R

BL67R

BL68R

BL72R

BL76R

BL78R

BL-7875

Precision Turbos w/ T4 Housing:

5858

6062

6262

6266

6466

6766

6870

7675

"This is the PERFECT OEM Upgrade turbo for both street and track use for the EVO 8/9."

Overview

Introducing the new BL TD06SL2R-20G Billet turbocharger for the Mitsubishi Evolution 8/9! This is a direct bolt on replacement for your OEM turbo with no external modifications required for fitment. The BL TD06SL2R-20G is the perfect direct replacement for the everyday enthusiast or diehard track racer wanting a powerful turbo.

The popular 20G compressor wheel has become the go-to upgrade for the stock frame Evo 8/9 turbo for those wanting to make the most power in a stock frame. In stock MHI form, the 20G wheel is good but we took it a step further. We reworked the 20G compressor wheel to our specifications, providing more flow and overall power. Made from forged billet aluminum, our wheel features a 6+6 blade count, slim hub, and extended tip exducer. These are just a few of the highlights that give our Billet 20G compressor wheel an extra kick. The TD06SL2R turbine wheel is a jump up from the stock TD05HR. This cuts down on back pressure and allows the 4G63 engine to breathe easier at high rpms. This results in a smooth powerband all the way to redline. To handle this extra power we replaced the stock TD06 thrust bearing with our 360* Monster Thrust Upgrade. New oil drain gasket, crush washers, and turbine inlet & outlet gaskets are included at no extra charge.

Quick Specs

• Compressor
• Boost Lab spec 20G Billet Compressor Wheel
• Stock frame Evo-8/9 compressor cover
• Turbine
• MHI TD06SL2R Turbine Wheel

• 10.5cm2 Ni-Resist Evo-8/9 Turbine Housing
• 1 Bar Internal Wastegate Actuator
• Bearing
• MHI TD06 Twin Hydrodynamic Journal Bearings
• 360* TD06MTU Thrust Bearing (Monster Thrust Upgrade)
• Hardware & Gaskets
• Copper Crush Washers
• Turbo Oil Drain Gasket
• Turbine Inlet Gasket
• Turbine Discharge Gasket

Boost Lab VF48 Subaru STi Upgrade Turbocharger

Billet Compressor Wheel | Direct Replacement for 08-21 Subaru STi | Perfect Upgrade for 02-07 WRX & 04-07 STi

The Boost Lab VF48 is a direct replacement turbocharger for the 2008 through 2021 Subaru WRX STi. In addition, this unit is a perfect direct fit upgrade for the 2002 through 2007 Subaru WRX. This model features an upgraded billet compressor wheel that produces an additional 10% flow horsepower compared to the factory cast wheel.

All Boost Lab turbochargers are VSR balanced & tested and come with an industry standard 1 year/unlimited mile warranty.

Specifications:

• Compressor Wheel: Billet 46mm/59mm
• Turbine Wheel: 53mm/48mm
• Bearing Type: Twin Hydrodynamic Journal Bearing w/ 360* Thrust
• Fitment: Direct Replacement for 2008-2021 Subaru WRX STi
• Additional Fitment: 2002-2007 Subaru WRX & 2004-2007 WRX STi

Boost Lab VF48 Subaru STi Factory Replacement Turbocharger

Cast Compressor Wheel | Direct Replacement for 08-21 Subaru STi | Perfect Upgrade for 02-07 WRX & 04-07 STi

The Boost Lab VF48 is a direct replacement turbocharger for the 2008 through 2021 Subaru WRX STi. In addition, this unit is a perfect direct fit upgrade for the 2002 through 2007 Subaru WRX.

All Boost Lab turbochargers are VSR balanced & tested and come with an industry standard 1 year/unlimited mile warranty.

Specifications:

• Compressor Wheel: Cast 46.5mm/60mm
• Turbine Wheel: 53mm/48mm
• Bearing Type: Twin Hydrodynamic Journal Bearing w/ 360* Thrust
• Fitment: Direct Replacement for 2008-2013 Subaru WRX STi
• Additional Fitment: 2002-2007 Subaru WRX & 2004-2007 WRX STi

High Flow Upgrade! | Direct Replacement for 08-21 Subaru STi | Perfect Upgrade for 02-07 WRX & 04-07 STi

The Boost Lab VF48HF turbocharger serves as a convenient and compatible replacement upgrade option specifically designed for the Subaru WRX STi models produced between 2008 and 2021. Distinguishing itself, this particular turbocharger variant boasts an enhanced compressor wheel, slightly larger in size, along with a meticulously engineered turbine wheel, ensuring exceptional flow capacity.

All Boost Lab turbochargers are VSR balanced & tested and come with an industry standard 1 year/unlimited mile warranty.

Specifications:

• Compressor Wheel: Billet 50mm/68mm
• Turbine Wheel: High Flow 53mm/48mm
• Bearing Type: Twin Hydrodynamic Journal Bearing w/ 360* Thrust
• Fitment: Direct Replacement for 2008-2021 Subaru STi
• Additional Fitment: 2002-2007 Subaru WRX & 2004-2007 WRX STi

Boost Lab VF52 Subaru WRX Factory Replacement Turbocharger

Billet Compressor Wheel | Direct Replacement for 08-14 Subaru WRX - 2005-2009 Legacy GT

The Boost Lab VF52 is a direct replacement turbocharger for the 2008 through 2014 Subaru WRX or 2005-2009 Legacy GT. No need to worry about a retune or anything else, just install this turbo and be on your way.

All Boost Lab turbochargers are VSR balanced & tested and come with an industry standard 1 year/unlimited mile warranty.

Specifications:

• Compressor Wheel: Billet 46.5mm/60mm
• Turbine Wheel: 53mm/48mm
• Bearing Type: Twin Hydrodynamic Journal Bearing w/ 360* Thrust
• Fitment: Direct Replacement for 2008-2013 Subaru WRX
• Additional Fitment: Direct Replacement for 2005-2009 Legacy GT
• Replacement for OE PN: 14411AA800

Boost Lab VF52 Subaru WRX Factory Replacement Turbocharger

Cast Compressor Wheel | Direct Replacement for 08-14 Subaru WRX - 2005-2009 Legacy GT

The Boost Lab VF52 is a direct replacement turbocharger for the 2008 through 2014 Subaru WRX or 2005-2009 Legacy GT. No need to worry about a retune or anything else, just install this turbo and be on your way.

All Boost Lab turbochargers are VSR balanced & tested and come with an industry standard 1 year/unlimited mile warranty.

Specifications:

• Compressor Wheel: Cast 46.5mm/60mm
• Turbine Wheel: 53mm/48mm
• Bearing Type: Twin Hydrodynamic Journal Bearing w/ 360* Thrust
• Fitment: Direct Replacement for 2008-2013 Subaru WRX
• Additional Fitment: Direct Replacement for 2005-2009 Legacy GT
• Replacement for OE PN: 14411AA800

High Flow Upgrade! | Direct Replacement for 08-14 Subaru WRX - 2005-2009 Legacy GT

The Boost Lab VF52HF turbocharger serves as a convenient and compatible replacement upgrade option specifically designed for the Subaru WRX models produced between 2008 and 2014 and the 2005 to 2009 Legacy GT. Distinguishing itself, this particular turbocharger variant boasts an enhanced compressor wheel, slightly larger in size, along with a meticulously engineered turbine wheel, ensuring exceptional flow capacity.

All Boost Lab turbochargers are VSR balanced & tested and come with an industry standard 1 year/unlimited mile warranty.

Specifications:

• Compressor Wheel: Billet 50mm/68mm
• Turbine Wheel: High Flow 53mm/48mm
• Bearing Type: Twin Hydrodynamic Journal Bearing w/ 360* Thrust
• Fitment: Direct Replacement for 2008-2014 Subaru WRX
• Additional Fitment: Direct Replacement for 2005-2009 Legacy GT
• Replacement for OE PN: 14411AA800

Boost Lab BL-5757 Turbocharger - Affordable Entry-Level Power with Exceptional Reliability

Introducing the Boost Lab BL-5757 Turbocharger, an entry-level solution offering impressive power and reliability at a budget-friendly price. This turbocharger features a cast 57mm compressor wheel and a 57mm turbine, delivering excellent boost and performance. It comes equipped with a .63 A/R T31 (2.5) 4-bolt discharge turbine housing, with an optional V-band outlet for added flexibility, and a standard T04E 2.5 Inlet / 2 Outlet compressor housing, providing versatility for various applications.

Engineered with advanced technology, the BL-5757 is assembled and VSR balanced in-house to ensure top-tier performance and durability. It includes an industry-standard 1-year unlimited mileage warranty for added peace of mind. Usually in stock and ready to ship the same day, the BL-5757 is the perfect choice for those seeking a high-performance upgrade without breaking the bank. Enhance your turbo system with a turbocharger that combines affordability with exceptional power and reliability.

550hp Rated  - Power Up Your Performance

The Boost Lab BL-5757 Turbocharger is rated for up to 550hp, making it an excellent choice for high-performance applications. With its robust construction and advanced design, it delivers the power needed to achieve outstanding performance in a variety of setups.

 BL-5757 Specs:

• Compressor Housing: 3" Inlet / 2" Outlet
• Compressor Wheel: Cast 57mm inducer
• Turbine Housing Options:
• T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
• T3 .63 A/R T-31 w/ V-Band Outlet
• Turbine Wheel: Inconel 57mm
• Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
• Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25

 **Downpipe Flange Option Description/Disclaimer**

The BL-5757 turbocharger comes standard with a T31 frame T3 .63 A/R turbine housing that has a 2.5" 4-bolt outlet.

For an additional $85, we offer a service to weld a 3" V-Band flange to the turbine housing outlet. This option is selected on the first dropdown menu when adding the turbocharger to the cart.

Important: The "Downpipe Flange Options" below the turbine housing selection are not for choosing the turbine housing outlet flange. This option is for customers who are:

✅ Building a new exhaust downpipe from scratch
✅ Adapting an existing downpipe to fit this turbo

DO NOT select both the "T3 .63 A/R 2.5" 4-Bolt" option and the "3" V-Band Downpipe Flange" option together. These are different outlet styles and cannot be combined.

If you're unsure which option to choose, please contact us before placing your order!

 Additional Info

Assembled in Tampa, FL

All Boost Lab turbochargers are meticulously assembled in Tampa, FL, ensuring top-notch quality and craftsmanship for every unit.

VSR Balancing

Every turbocharger undergoes VSR (Variable Speed Rotation) balancing to ensure smooth operation and reliability, reducing vibrations and enhancing performance.

Talk with an Expert

When you contact Boost Lab, you speak directly with a hands-on expert. With over 35 years of turbocharger knowledge, our team is dedicated to providing you with the best advice and support.

Custom Solutions

Boost Lab offers tailored solutions for a variety of applications, ensuring you get the perfect fit for your specific needs. Explore our range of turbochargers and parts to find the best option for your performance goals.

Explore More Turbo Options

Discover our full selection of Universal Performance Turbochargers to find a variety of high-quality turbochargers designed to meet diverse performance needs and applications.

Introducing the Boost Lab BL-5858 Billet T04E Turbocharger, an entry-level powerhouse designed to deliver up to 630hp at an affordable price. This turbocharger features a 6+6 58mm billet compressor wheel and a 58mm high-flow turbine wheel, ensuring optimal airflow and performance.

With your choice of a T31 T3 .63 A/R 2.5" 4-bolt outlet turbine housing or a T31 T3 .63 A/R with V-Band outlet, this unit offers flexibility for various setups. Whether you’re building a street or track car, the BL-5858 provides impressive performance and reliability without breaking the bank. Assembled with high-quality components, it’s the perfect choice for enthusiasts looking to upgrade their turbo system.

Key Features:

• 6+6 58mm billet compressor wheel for maximum airflow
• 58mm high-flow Inconel turbine wheel
• Available with T31 T3 .63 A/R 2.5" 4-bolt or V-Band outlet turbine housing options
• Compressor Housing: 3 In / 2 Outlet
• Compressor Wheel: 58mm Extreme Contour Billet 6-Blade w/ Extended Exducer
• Turbine Housing: .63 A/R T-31 (2.5) 4-Bolt Outlet
• BOLT SPECS: Oil Feed - 5/16-18, 1/4 NPT; Oil Return - 3/8-16
• Rated for up to 630hp
• High performance at an entry-level price

 BL-5858 Specs:

• Compressor Housing: 3" Inlet / 2" Outlet
• Compressor Wheel: Billet 6+6 58mm inducer
• Turbine Housing Options:
• T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
• T3 .63 A/R T-31 w/ V-Band Outlet
• Turbine Wheel: Inconel 58mm
• Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
• Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25

Additional Info

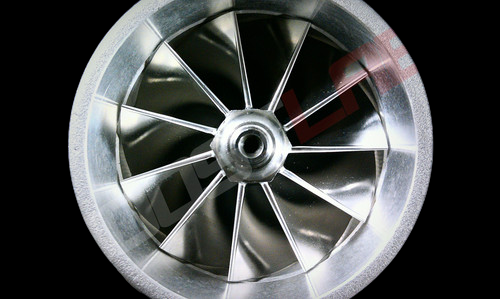

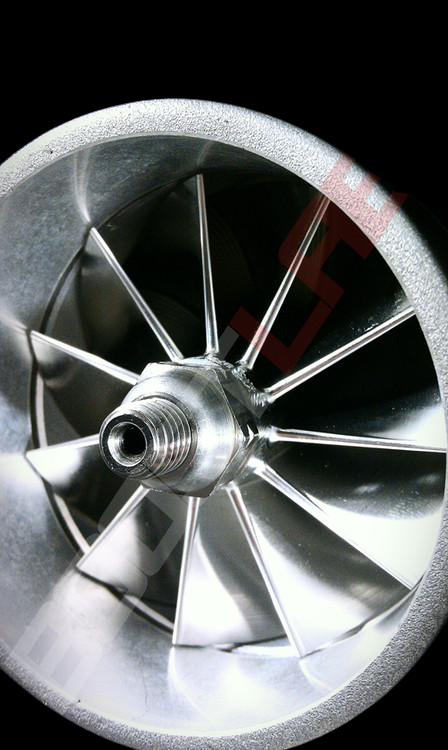

2618 Billet Aluminum Compressor Wheel
Boost Lab turbochargers feature a 2618 billet aluminum compressor wheel, precision-milled for optimal airflow. This design ensures maximum performance and efficiency, delivering exceptional airflow at various shaft speeds.

Assembled in Tampa, FL
All Boost Lab turbochargers are meticulously assembled in Tampa, FL, ensuring top-notch quality and craftsmanship for every unit.

VSR Balancing
Every turbocharger undergoes VSR (Variable Speed Rotation) balancing to ensure smooth operation and reliability, reducing vibrations and enhancing performance.

Talk with an Expert
When you contact Boost Lab, you speak directly with a hands-on expert. With over 35 years of turbocharger knowledge, our team is dedicated to providing you with the best advice and support.

Custom Solutions

Boost Lab offers tailored solutions for a variety of applications, ensuring you get the perfect fit for your specific needs. Explore our range of turbochargers and parts to find the best option for your performance goals.

Explore More Turbo Options

Discover our full selection of Universal Performance Turbochargers to find a variety of high-quality turbochargers designed to meet diverse performance needs and applications.

BL5455X Turbocharger Features & Specs

The Boost Lab BL5455X Billet Turbocharger is designed for serious performance enthusiasts demanding fast spool, broad powerband, and top-end efficiency. Capable of supporting up to 650HP, the BL5455X delivers the perfect balance of street manners and track-ready performance.

Key Features:

• Compressor Housing: Ported 4" Inlet / 2.5" Outlet

• Compressor Wheel: Point-Milled Billet 10-Blade 58mm

• Turbine Wheel: 55mm Performance Inconel – optimized for reduced backpressure and maximum flow

• Bearing Housing: Oil & Water Cooled (Dual Ball Bearing CHRA)

• Oil Feed Fitting: 7/16-24"

• Water Ports: M14 x 1.5

• Warranty: 1-Year / Unlimited Mileage

Available Turbine Housing Options:

• T3 .63 A/R w/ 3" 4-Bolt Outlet

• T3 .82 A/R w/ 3" 4-Bolt Outlet

• T3 .63 A/R w/ 3" V-Band Outlet

• T3 .82 A/R w/ 3" V-Band Outlet

• V-Band In/Out .83 A/R

Why Choose the Boost Lab BL5455X Billet Turbocharger?

Engineering for Maximum Efficiency

The BL5455X features a point-milled billet 54mm compressor wheel and a newly engineered 55mm Inconel turbine wheel, providing exceptional airflow and reduced exhaust restriction. This results in faster spool, improved transient response, and superior top-end power.

Dual Ball Bearing Durability

Built around a dual ball bearing, oil & water-cooled CHRA, the BL5455X offers outstanding reliability and high-boost capability. Water cooling is required for optimal performance and long-term bearing life under extreme conditions.

Assembled & VSR Balanced In-House

Every Boost Lab turbocharger, including the BL5455X, is VSR balanced using Turbo Technics equipment at our facility in Dade City, Florida. This ensures minimal vibration, reduced noise, extended bearing life, and maximum performance consistency.

Built by Experts, Trusted by Professionals

With over 35 years of combined turbocharger experience, the Boost Lab team designs, assembles, and tests each turbo with industry-leading precision. From street cars to dedicated race builds, our turbos are trusted by top performance tuners and engine builders worldwide.

Talk with a Boost Lab Turbo Expert

Have questions about your build or turbo selection? Speak directly with our experienced team - no automated support, just real turbo experts ready to help.

Our team can help you:

• Select the ideal turbine housing for your setup
• Confirm fitment and installation options
• Optimize supporting mods for your horsepower goals

Call or email sales@theboostlab.com to get personalized guidance for your build today.

Discover More

Explore our full lineup of Universal Performance Turbochargers - engineered to deliver unmatched quality, performance, and value across a wide range of applications.

Point Milled Billet Compressor | 1 Year Warranty | 660HP Power Rating

Description

This turbo features a newly designed Point-Milled Billet 54mm compressor wheel and a performance high flow 49mm Turbine Wheel. This unit comes standard with a ported 3" Inlet / 2" V-Band Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The BL54XR is fully assembled and VSR balanced in-house. All of our BL turbochargers come with an industry standard 1 year unlimited mileage warranty.  This unit is in stock and ships same day.

Specs:

• Compressor Housing: Ported 3" Inlet / 2" V-Band Outlet
• Compressor Wheel: Point-Milled Billet 54mm
• Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
• Turbine Wheel: Performance High Flow Inconel 49mm
• Oil Feed: 7/16-24
• Warranty: 1 Year/Unlimited Mile

Turbine Housing Options

• .72 A/R V-Band In/Out

Fits: 2022+ Subaru WRX with FA24 Engine

The Boost Lab BL54XR turbocharger is the premier direct-fit upgrade for 2022+ Subaru WRX owners seeking the perfect balance of fast spool and strong top-end power. Rated at 660 flow horsepower, the BL54XR delivers responsive boost characteristics that enhance daily drivability while providing serious performance gains on the street or track.

Engineered for enthusiasts running bolt-on modifications, quality fueling upgrades, and a proper tune, the BL54XR is the go-to choice for builds targeting 400-450+ wheel horsepower. Its optimized compressor and turbine sizing means you get into boost quickly without sacrificing the top-end power that makes the FA24 platform so rewarding.

Key Features:

• Boost Lab Exclusive 9-Blade 54XR (54mm Inducer) Point Milled Compressor Wheel: This advanced design maximizes airflow efficiency, delivering rapid spool times and strong power output throughout the RPM range.

• Hi Flow Turbine Wheel: Optimized for excellent exhaust gas flow, providing outstanding transient response and maximizing power delivery where you need it most.

• Dual Ball Bearing CHRA (Center Housing Rotating Assembly): Dual ball bearings reduce friction and improve durability, ensuring faster spool-up and reliable performance even under sustained high-boost conditions.

• 10.5cm² Turbine Housing: Optimized for excellent boost response and exhaust efficiency, enabling impressive power gains while maintaining quick spool characteristics.

• Coolant and Oil Fittings Included: Everything you need for a clean installation is in the box.

• All Gaskets Included: Complete gasket kit ensures a proper seal with no additional parts to source.

• Downpipe Studs and Nuts Included: Full hardware kit for straightforward installation.

• Must Transfer Over Your Factory Electronics: This turbocharger requires transferring your factory wastegate actuator and boost control solenoid for proper integration with your vehicle.

Why Choose the BL54XR?

• Optimized for Real-World Performance: The BL54XR is sized to deliver the best combination of spool and power for bolt-on and moderately built FA24 engines. It's the sweet spot for most enthusiasts.

• Daily Driver Friendly: Quick boost response means the BL54XR enhances your driving experience in all conditions-not just at wide-open throttle.

• Uncompromising Quality: Precision VSR balanced, assembled in Dade City, FL, and backed by Boost Lab's reputation for reliability. Every unit is built to perform.

• Effortless Installation: True stock-location fitment with all necessary hardware included. No custom fabrication required.

• Expert Support: Our team has over 35 years of combined turbocharger experience. We're here to help you get the most out of your build.

Is the BL54XR Right for You?

The BL54XR is ideal for enthusiasts with bolt-on modifications, upgraded fueling, and a quality tune-whether you're on pump gas or light E85. If you're building toward 500+ wheel horsepower with a fully built engine and aggressive fueling, check out our BL58XR (770 flow HP) for additional headroom.

Additional Info

2618 Billet Aluminum Compressor Wheel

Boost Lab's turbochargers feature a 2618 billet aluminum compressor wheel, precision-milled to maximize airflow. This high-strength material is engineered for optimal performance under extreme stress, ensuring top-tier performance in high-power applications.

Assembled in Dade City, FL

All Boost Lab turbochargers are meticulously assembled in Dade City, FL, ensuring the highest level of craftsmanship and quality for every unit we produce.

VSR Balancing

As a critical step in our build process, each turbocharger undergoes precision VSR (Vibration Sorting Rig) balancing using one of our Turbo Technics VSR balancing units. This essential process controls the turbo's vibration levels, reducing noise and significantly extending bearing life. Excessive vibration places undue stress on the turbo's bearings, potentially leading to premature failure. By reducing vibration to safe levels, VSR balancing ensures your turbocharger operates quietly and reliably.

Learn more about VSR balancing and why it's essential in proper turbocharger building practices.

Talk with an Expert

At Boost Lab, you'll speak directly with our hands-on turbocharger experts. With over 35 years of combined turbocharger knowledge, we're here to provide you with the best advice and support for your performance needs.

Custom Solutions

Boost Lab offers tailored solutions for various applications, ensuring you receive the perfect match for your specific performance goals.

Explore More Turbo Options

Discover our full lineup of Subaru Performance Turbochargers, crafted to meet a wide variety of performance needs across different platforms and applications.

Point Milled Billet Compressor | 1 Year Warranty | 660HP Power Rating

Description

This turbo features a newly designed Point-Milled Billet 54mm compressor wheel and a performance high flow 55mm Turbine Wheel. This unit comes standard with a ported 3" Inlet / 2" V-Band Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The BL54XR is fully assembled and VSR balanced in-house. All of our BL turbochargers come with an industry standard 1 year unlimited mileage warranty.  This unit is in stock and ships same day.

Specs:

• Compressor Housing: Ported 3" Inlet / 2" V-Band Outlet
• Compressor Wheel: Point-Milled Billet 54mm
• Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
• Turbine Wheel: Performance High Flow Inconel 55mm
• Oil Feed: 7/16-24
• Warranty: 1 Year/Unlimited Mile

Turbine Housing Options

• .83 A/R V-Band In/Out

Boost Lab Carbon Series BL-5757C CARBON SEAL Turbocharger

This turbo comes equipped with a compressor side Carbon Seal to prevent oil leakage and reduce oil consumption, making it ideal for draw-through carbureted setups and applications requiring high-vacuum reliability.

Introducing the Boost Lab BL-5757C Turbocharger, an entry-level solution offering impressive power and reliability at a budget-friendly price. This turbocharger features a cast 57mm compressor wheel and a 57mm turbine, delivering excellent boost and performance. It comes equipped with a .63 A/R T31 (2.5) 4-bolt discharge turbine housing, with an optional V-band outlet for added flexibility, and a standard T04E 2.5 Inlet / 2 Outlet compressor housing, providing versatility for various applications.

Engineered with advanced technology, the BL-5757 is assembled and VSR balanced in-house to ensure top-tier performance and durability. It includes an industry-standard 1-year unlimited mileage warranty for added peace of mind. Usually in stock and ready to ship the same day, the BL-5757 is the perfect choice for those seeking a high-performance upgrade without breaking the bank. Enhance your turbo system with a turbocharger that combines affordability with exceptional power and reliability.

550hp Rated  - Power Up Your Performance

The Boost Lab BL-5757C Turbocharger is rated for up to 550hp, making it an excellent choice for high-performance applications. With its robust construction and advanced design, it delivers the power needed to achieve outstanding performance in a variety of setups.

 Carbon Series BL-5757C Specs:

• Compressor Housing: 3" Inlet / 2" Outlet
• Compressor Wheel: Cast 57mm inducer
• Turbine Housing Options:
• T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
• T3 .63 A/R T-31 w/ V-Band Outlet
• Turbine Wheel: Inconel 57mm
• Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
• Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25
• Equipped with a carbon seal which is ideal for draw-through turbo setups.

**Downpipe Flange Option Description/Disclaimer**

The BL-5757 turbocharger comes standard with a T31 frame T3 .63 A/R turbine housing that has a 2.5" 4-bolt outlet.

For an additional $85, we offer a service to weld a 3" V-Band flange to the turbine housing outlet. This option is selected on the first dropdown menu when adding the turbocharger to the cart.

Important: The "Downpipe Flange Options" below the turbine housing selection are not for choosing the turbine housing outlet flange. This option is for customers who are:

✅ Building a new exhaust downpipe from scratch

✅ Adapting an existing downpipe to fit this turbo

DO NOT select both the "T3 .63 A/R 2.5" 4-Bolt" option and the "3" V-Band Downpipe Flange" option together. These are different outlet styles and cannot be combined.

If you're unsure which option to choose, please contact us before placing your order!

Additional Info

Assembled in Dade City, FL

All Boost Lab turbochargers are meticulously assembled in Tampa, FL, ensuring top-notch quality and craftsmanship for every unit.

VSR Balancing

Every turbocharger undergoes VSR (Variable Speed Rotation) balancing to ensure smooth operation and reliability, reducing vibrations and enhancing performance.

Talk with an Expert

When you contact Boost Lab, you speak directly with a hands-on expert. With over 35 years of turbocharger knowledge, our team is dedicated to providing you with the best advice and support.

Custom Solutions

Boost Lab offers tailored solutions for a variety of applications, ensuring you get the perfect fit for your specific needs. Explore our range of turbochargers and parts to find the best option for your performance goals.

Explore More Turbo Options

Discover our full selection of Universal Performance Turbochargers to find a variety of high-quality turbochargers designed to meet diverse performance needs and applications.
