Product Description

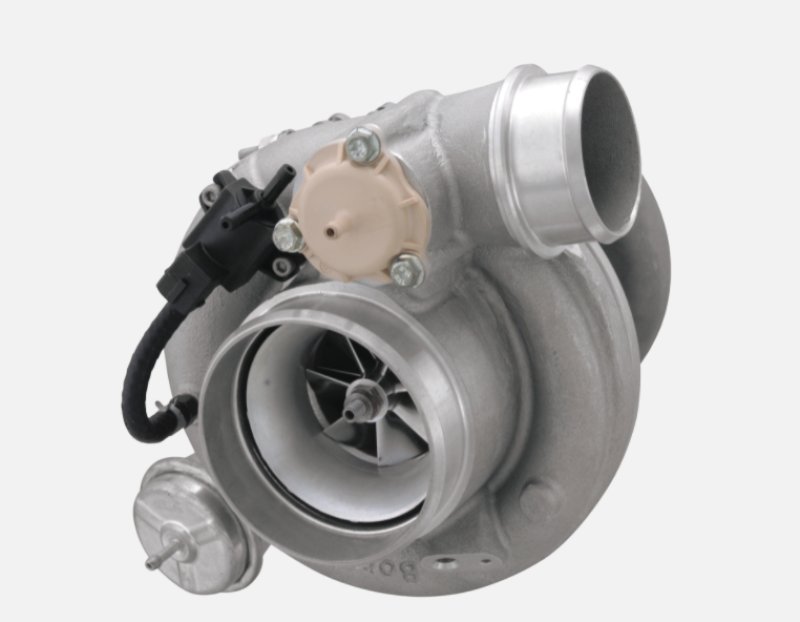

Borg Warner EFR 9174 Turbocharger

EFR 9174 is the biggest, baddest, highest flowing turbo in the EFR family. Capable of a remarkable 94lb/min airflow and stable at very high boost levels, the 91mm OD compressor measures 67.7mm inducer and is a 7 blade FMW compressor. This turbo will redefine what 67mm turbos are capable of. After receiving requests from many high power enthusiasts and drag racers restrained to a 67mm inducer, there was a clear need for 1000hp capable turbos that still provide good spool and response. Using the high flowing 1.05 a/r Twinscroll T4 turbine housing is the most efficient way to run this as a single turbocharger. If twin turbos will be run, the .83 a/r or 1.05 a/r can be used, depending on manifolds and space constraints. Ideal for use as single turbo applications in the 700-1000hp per turbo range, or as very high power twin turbo applications >1000-1700+hp. Available with .83 a/r undivided T3 internal WG or 1.05 a/r divided twinscroll T4 housings (external WG). Ceramic Ball Bearing only, watercooling optional (recommended)

Compressor Specifications

  • Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
  • Compressor Wheel OD (exducer): 91mm
  • Compressor Wheel Inducer: 67.7mm
  • Max Flow Rate: 94 lb/min
  • Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
  • Compressor Housing Connections:
    • Inlet: 4" Ported Shroud Hose Coupler
    • Outlet: 2.5" Hose Coupler w/ integrated Vband option

Turbine Specifications

  • Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
  • Turbine Wheel OD: 74mm
  • Stainless Steel Investment cast Housing
    The EFR 9180 is available in (4) different turbine housing configurations:
    • 0.83 A/R T3 Undivided (Internal WG)
    • 0.92 A/R T4 Twin Scroll (Internal WG)
    • 1.05 A/R T4 Twin Scroll (external WG)
    • 1.45 A/R T4 Twin Scroll (external WG)
  • Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
