Custom Midframe Ball Bearing Turbo

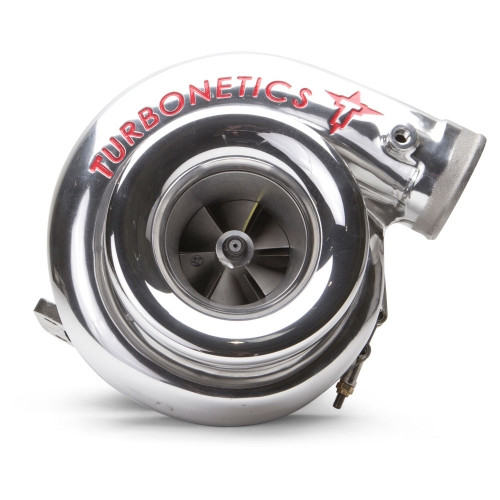

Turbonetics Custom Midframe Ball Bearing Turbo
The largest series within the mid range turbochargers, the mid frame compressor side is designed for 72, 76 and 78mm HP wheels and billet HP-C compressor wheels. The turbine side is one size up from the T04, using F1-75 turbine wheels. For ease of installation and to integrate the Mid-Frame turbo with existing hardware, we maintained the T04 inlet flange and use a 4" outlet on the turbine housing. This combination supports 900 up to 1500 horsepower, the most you can get from a T04 flange, and features Turbonetics Ceramic Ball Bearing system as standard.
Please note that we recommend the use of 3/4" (ideally) but 5/8" minimum inner diameter for all components that are part of the oil drain system. Use Turbonetics 21521 1/2" NPT flange (inner diameter is 5/8") for best installation, and to avoid any backup from the oil drain system.
